Description

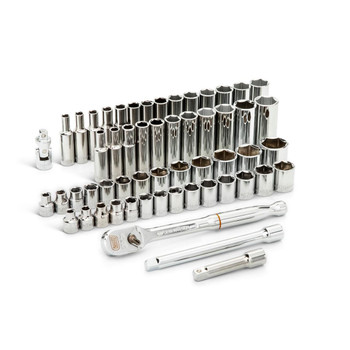

The Pass-Thru™ socket and ratchet system by GEARWRENCH was designed to improve productivity and access on every job. The ratchets need as little as 5° to move fasteners vs. 30° for standard wrenches and are 40% stronger than standard ratchets by eliminating the drive tang. The ratchets are up to 50% thinner than standard ratchets, providing superior access to even the most hard to reach fasteners. The Pass-Thru™ sockets are a thin wall design. They replace the need for deep well sockets as they loosen and drive nuts on bolts of any length. The Pass Thru® sockets integrate into the GEARWRENCH GearRatchet™ handle, reducing overall height and increasing torque strength. The GEARWRENCH adapter allows for the use of standard sockets and drive tools.
View AllClose
__#Product Specifications
| Warranty | Full Lifetime |
| Drive Tang Size | 3/8 in |
| ANSI Specification | Meets or Exceeds |
| Family Name | Pass-Thru™ |
| Size | 3/8 in 7/16 in 1/2 in 9/16 in 5/8 in 11/16 in 3/4 in10mm 11mm 12mm 13mm 14mm 15mm 16mm 17mm 18mm 19mm |
| Included St orage | Blow Mold Case |
| Set Size Range Max | 3/4 in19mm |
| Set Size Range Min | 3/8 in10mm |
| Ratchet Head Style | Pass-Thru™ |
| Material | Alloy Steel |
| Set Piece Count | 21 |
| Ratchet Handle Type | Standard |
| Length Format | Standard |
| Finish | Full Polish Chrome |
| Quick Release | No |
| Tooth Count | 72 |
| ASME Specification | Meets or Exceeds |
| Type | Mechanics Tool Set |
| SAE/Metric/Torx | SAE/Metric |
| Drive Type | 6 Point |
__#Features & Benefits
- Up to 50% thinner head profile than conventional ratchet systems
- 5° ratcheting arc
- Built up to 40% stronger than traditional ratchets by eliminating the drive tang
- Bright, full polish chrome finish easily wipes clean and resists corrosion
- Pass-Thru™ ratchet and socket system eliminates the need for deep sockets
- Includes blow mold case for storage and organization
- Meets or exceeds ASME specifications
