The set of three narrow, quickly adjustable jaws is suitable for 3-jaw universal pullers. The narrow jaws ensure that even tight and hard-to-reach gaps can be accessed. The green hand knobs provide maximum operating comfort and allow for quick, tool-free loosening and fastening of the jaws, even with wet or oily hands.
Application
As accessories for tight and hard-to-reach spaces.Article features

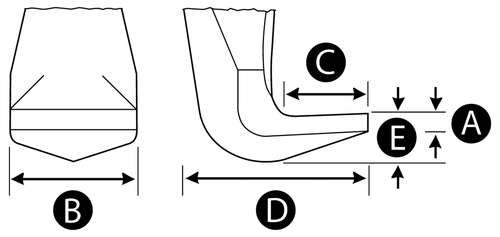

 Reach external extraction [mm/inch] |
 Overall length [mm/inch] |
 Total jaw thickness (L+1 mm) (jaw distance to base surface) [mm/inch] |
 Overall jaw's hooked claw depth (overall claw depth H) [mm/inch] |
 jaw's hooked claw width (jaw spread J) [mm/inch] |
 Usable jaw's hooked claw reach (usable claw reach O) [mm/inch] |
 Jaw's hooked claw thickness at the tip (claw thickness K) [mm/inch] |
Gross weight [kg/lb] |
FWI seal of origin "Made in Germany" |
|---|---|---|---|---|---|---|---|---|
|
200 mm / 8 in |
227 mm / 8 15/16 in |
3 mm / 1/8 in |
14 mm / 9/16 in |
30 mm / 1 3/16 in |
7 mm / 1/4 in |
3 mm / 1/8 in |
1,62 kg / 3.572 |
