Description
Description

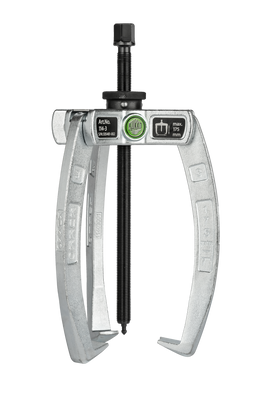

The adjustable, 2-jaw/3-jaw combination Pullers of series 114 with self-centering jaws (Autogrip Technology) are versatile for external extraction as well as internal extraction of bearings, gears, discs, and similar components in all common sizes for crafts, workshops, and industry. For non-contact and particularly gentle extraction, the Puller can be combined with a sliding hammer using a suitable thread adapter. The 3-jaw configuration guarantees even load distribution and thus a particularly secure hold on the part to be extracted. If there is limited space around the component, the 3-jaw Puller can be converted to a 2-jaw Puller thanks to the combination crossbar.
Application
For pulling off bearings, gears, discs, and similar componentsArticle features
 Spread external extraction (min. - max.) [mm/inch] |
 Reach external extraction [mm/inch] |
 spread internal extraction (min. - max.) [mm/inch] |
 Wrench size actuation hexagon [mm/inch] |
 Thread dimension |
Max. torque [Nm/ft lb] |
Max. tensile force [kN] |
 Max. tension force [t/US t. sh.] |
Gross weight [kg/lb] |
 Carbon footprint [kg CO₂e] |
FWI seal of origin "Made in Germany" |
|---|---|---|---|---|---|---|---|---|---|---|
|
0 - 175 mm / 0 - 6 7/8 in |
175 mm / 6 7/8 in |
40 - 110 mm / 1 9/16 - 4 5/16 in |
17 mm / 11/16 in |
M16 x 1,5 |
115 Nm / 84.82 |
70 kN |
7 t / 7.72 |
0,3 kg / 0.662 |
0.01 | ✓ |
