Description

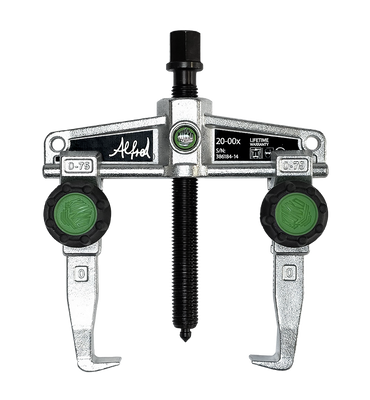

Based on the ingenuity and pioneering spirit of Alfred Kleinbongartz, the universal pullers with sliding, always-parallel jaws of series 20x are receiving a functional upgrade. The focus is on operating convenience and user-friendliness. Specifically, the following optimizations have been implemented: For even more flexibility during Pulling, the puller range has been expanded by two sizes (20-0x and 20-00x). This results in a spread range for external extraction from 0 to 350 mm as well as a maximum tension force of 2.5 to 10.5 t. To increase load capacity, the pullers have been equipped with reinforced shoulders, creating a stable H-profile. This is thanks to the newly rethought, innovative design of the crossbar, which ensures maximum stability even under high tension force. Above the crossbar there is an adjustment scale as an orientation aid, which enables uniform adjustment of the jaws and ensures concentric as well as force-optimized Pulling even at the highest pulling forces. Thanks to the quick-clamping jaws, settings and readjustments can be carried out quickly and easily. Below the crossbar, in addition to the item number of the crossbar for reorders, there is another six-digit number. The first three digits indicate which spindle is compatible with the crossbar. The last three digits (xxx) identify the variable spindle length, which varies depending on the version in the range between 85 mm and 600 mm. In addition to mechanical spindles with a different thread length, grease hydraulic spindles can also be used—depending on the size of the puller—as part of a hydraulic upgrade, for easy and controlled Pulling of particularly stubborn parts. Another Advantage is the two eyelets on the sides of the crossbar for attaching a Fall protection (series 660), which additionally secures the puller and ensures safe fixing during work or storage. The 2-jaw universal pullers with quickly adjustable and robust standard jaws are used for particularly safe Pulling of bearings, gears and discs in all common sizes for trade, workshop and industry. This allows any component to be loosened that sits on a shaft and is freely accessible from the outside. The Soft-Touch knurls guarantee maximum operating convenience even with wet or oily hands. By simply turning the jaws over, the pullers can also be used as an internal extractor.
Application
To detach bearings, gears, and discs in all common sizes for crafts, workshops, and industry.Article features
 Item number |
 Spread external extraction (min. - max.) [mm/inch] |
 Reach external extraction [mm/inch] |
 spread internal extraction (min. - max.) [mm/inch] |
 Wrench size actuation hexagon [mm/inch] |
Max. torque [Nm/ft lb] |
Max. tensile force [kN] |
 Max. tension force [t/US t. sh.] |
Gross weight [kg/lb] |
Included in the set | FWI seal of origin "Made in Germany" |
|---|---|---|---|---|---|---|---|---|---|---|
| 20-00x New |
0 - 95 mm / 0 - 3 3/4 in |
75 mm / 2 15/16 in |
70 - 130 mm / 2 3/4 - 5 1/8 in |
13 / 1/2 in |
40 Nm / 29.50 |
25 kN |
2.5 t / 2.76 |
0,3 kg / 0.662 |
20x-TK-13 | ✓ |
