Description
Description

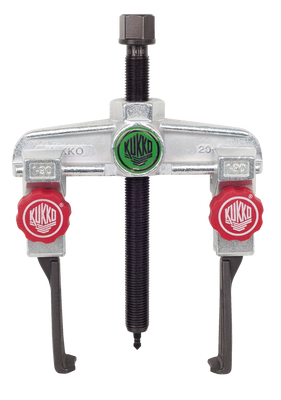

The 2-jaw universal puller with extremely narrow, quickly adjustable jaws and trapezoidal support surfaces on the claw is used for safely and user-friendly pulling of transmission gears, bearings, sprockets, synchronizer bodies, and similar components. This allows for the loosening of any component that sits on a shaft and is freely accessible from the outside. The trapezoidal support surfaces of the claw ensure that even very tight and hard-to-reach spaces are accessible.
Application
For safe and user-friendly extraction of transmission gears, bearings, sprockets, synchronization bodies, and similar components.Article features
 Item number |
 Spread external extraction (min. - max.) [mm/inch] |
 Reach external extraction [mm/inch] |
 spread internal extraction (min. - max.) [mm/inch] |
 Wrench size actuation hexagon [mm/inch] |
Max. torque [Nm/ft lb] |
Max. tensile force [kN] |
 Max. tension force [t/US t. sh.] |
Gross weight [kg/lb] |
Included in the set |
|---|---|---|---|---|---|---|---|---|---|
| 20-1+S-T |
16 - 90 mm / 5/8 - 3 9/16 in |
100 mm / 3 15/16 in |
70 - 140 mm / 2 3/4 - 5 1/2 in |
17 mm / 11/16 in |
35 Nm / 25.82 |
25 kN |
2.5 t / 2.76 |
1,215 kg / 2.679 |
K-20-1+S-T |
