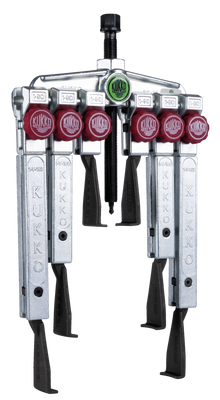

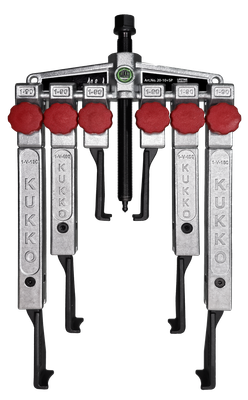

The 2-jaw universal puller with narrow, quickly adjustable extractor jaws is used for safely and user-friendly extracting of bearings, gears, and discs in all common sizes for craftsmanship, workshops, and industry. Equipped with three pairs of extractor jaws in various lengths, extraction processes with diverse combinations and depths are made possible. This allows for the removal of any component seated on a shaft that is freely accessible from the outside. The narrow extractor jaws ensure that tight and poorly accessible spaces can also be reached.
Application
For the safe and user-friendly removal of bearings, gears, and discs in all common sizes for crafts, workshops, and industry.Article features
 Item number |
 Spread external extraction (min. - max.) [mm/inch] |
 Reach external extraction [mm/inch] |
 spread internal extraction (min. - max.) [mm/inch] |
 Wrench size actuation hexagon [mm/inch] |
Max. torque [Nm/ft lb] |
Max. tensile force [kN] |
 Max. tension force [t/US t. sh.] |
Gross weight [kg/lb] |
Included in the set |
|---|---|---|---|---|---|---|---|---|---|
| 20-10+SP |
16 - 120 mm / 5/8 - 4 3/4 in |
350 mm / 13 3/4 in |
70 - 180 mm / 2 3/4 - 7 1/16 in |
17 mm / 11/16 in |
35 Nm / 25.82 |
25 kN |
2.5 t / 2.76 |
3,875 kg / 8.544 |
K-2030-10+S |
