Description

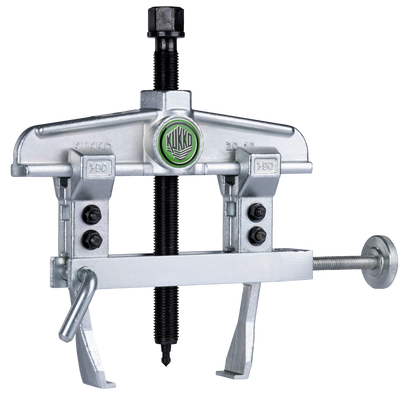

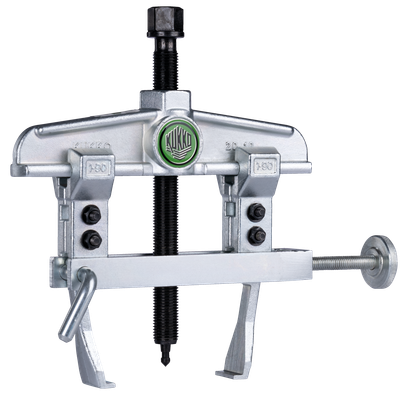

The 2-jaw puller for gear wheels is used for removing gear wheels for the VW/Audi clutch-transmission combination from the year 2007 onwards in craft, workshop, and industry. With powerful, slim special hooks and a subsequently fixable lateral clamping device, the series 20-V is an ideal problem solver. Apart from models from VW and Audi, it is also usable for many other gears and ball bearings where work with standard pullers is impossible.
Application
To extract gear wheels for the VW/Audi clutch-transmission combination from model year 2007 in crafts, workshops, and industry.Article features
 Spread external extraction (min. - max.) [mm/inch] |
 Reach external extraction [mm/inch] |
 Wrench size actuation hexagon [mm/inch] |
Max. torque [Nm/ft lb] |
Max. tensile force [kN] |
 Max. tension force [t/US t. sh.] |
Gross weight [kg/lb] |
 Carbon footprint [kg CO₂e] |
|---|---|---|---|---|---|---|---|
|
0 - 120 mm / 0 - 4 3/4 in |
100 mm / 3 15/16 in |
17 mm / 11/16 in |
80 Nm / 59.01 |
45 kN |
4.5 t / 4.96 |
1,59 kg / 3.506 |
2,08 |
