Description
Description

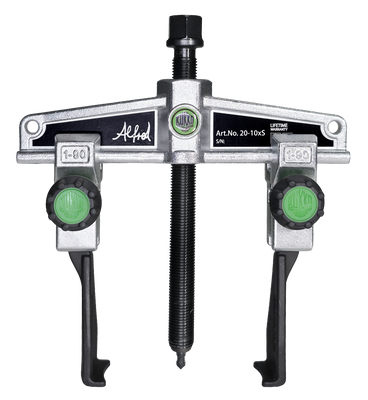

The 2-jaw universal pullers of series 20xS with narrow, quick adjustment jaws are used for the safe and user-friendly pulling of bearings, gears, and disks in all common sizes for crafts, workshops, and industry. This allows any component seated on a shaft and freely accessible from the outside to be removed. The narrow jaws ensure that even tight and hard-to-reach spaces can be accessed. The soft-touch knobs guarantee the highest operating comfort, even with wet or oily hands.
Application
For the safe and user-friendly removal of bearings, gears, and discs in all common sizes for crafts, workshops, and industry.Article features
 Spread external extraction (min. - max.) [mm/inch] |
 Reach external extraction [mm/inch] |
 spread internal extraction (min. - max.) [mm/inch] |
 Wrench size actuation hexagon [mm/inch] |
Max. torque [Nm/ft lb] |
Max. tensile force [kN] |
 Max. tension force [t/US t. sh.] |
Gross weight [kg/lb] |
Included in the set |  Carbon footprint [kg CO₂e] |
FWI seal of origin "Made in Germany" |
|---|---|---|---|---|---|---|---|---|---|---|
|
4 - 120 mm / 3/16 - 4 3/4 in |
100 mm / 3 15/16 in |
70 - 180 mm / 2 3/4 - 7 1/16 in |
17 mm / 11/16 in |
35 Nm / 25.82 |
25 kN |
2.5 t / 2.76 |
1,42 kg / 3.131 |
20-STxS | 1.65 | ✓ |
