Description
Description

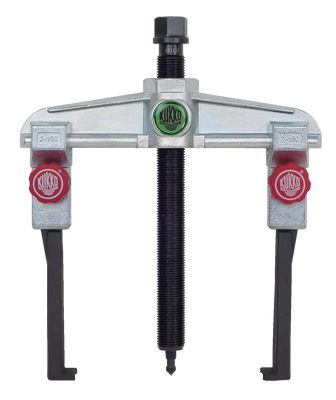

The 2-jaw universal puller with narrow, quickly adjustable jaws is used for the safe and user-friendly removal of bearings, gears, and discs in all common sizes for craft, workshop, and industry. This allows for the loosening of any component seated on a shaft and freely accessible from the outside. The narrow jaws ensure that even tight and hard-to-reach gaps can be accessed.
Application
For the safe and user-friendly removal of bearings, gears, and discs in all common sizes for crafts, workshops, and industry.Article features
 Item number |
 Spread external extraction (min. - max.) [mm/inch] |
 Reach external extraction [mm/inch] |
 spread internal extraction (min. - max.) [mm/inch] |
 Wrench size actuation hexagon [mm/inch] |
Max. torque [Nm/ft lb] |
Max. tensile force [kN] |
 Max. tension force [t/US t. sh.] |
Gross weight [kg/lb] |
Included in the set |
|---|---|---|---|---|---|---|---|---|---|
| 20-2+S |
16 - 160 mm / 5/8 - 6 in |
150 mm / 6 in |
100 - 220 mm / 3 15/16 - 8 11/16 in |
22 mm / 7/8 in |
120 Nm / 88.51 |
50 kN |
5 t / 5.51 |
3,04 kg / 6.703 |
20-ST+S, 20+ST+S |
