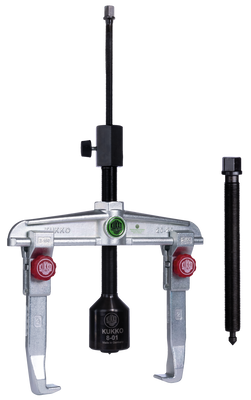

The 2-jaw universal puller with quickly adjustable jaws and hydraulic spindle is used for particularly safe and user-friendly removal of extremely tightly seated bearings, gears, and discs in all common sizes for trades, workshops, and industry. The hydraulic spindle achieves a tension force of 10 t. This allows for the loosening of any component that sits on a shaft and is freely accessible from the outside. For removal processes with a tension force of up to 10 t and/or in confined spaces, the mechanical spindle can be used.
Application
For particularly safe and user-friendly removal of extremely tight bearings, gears, and discs in all common sizes for crafts, workshops, and industry.Article features
 Spread external extraction (min. - max.) [mm/inch] |
 Reach external extraction [mm/inch] |
 spread internal extraction (min. - max.) [mm/inch] |
Max. torque [Nm/ft lb] |
Max. tensile force [kN] |
 Max. tension force [t/US t. sh.] |
Gross weight [kg/lb] |
Included in the set |  Carbon footprint [kg CO₂e] |
|---|---|---|---|---|---|---|---|---|
|
11 - 200 mm / 7/16 - 7 7/8 in |
160 mm / 6 5/16 in |
100 - 260 mm / 3 15/16 - 10 1/4 in |
15 Nm / 11.06 |
100 kN |
10 t / 11.02 |
4,26 kg / 9.393 |
K-2030-20+S+B | 5,58 |
