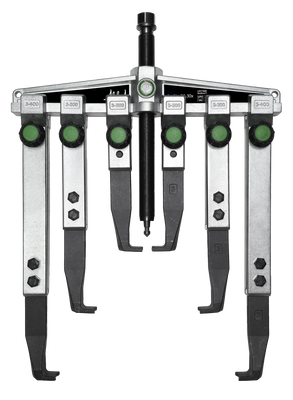

The 2-jaw universal puller with narrow, quick-adjust jaws is used for the safe and user-friendly pulling of bearings, gears, and discs in all common sizes for crafts, workshops, and industry. By equipping with three pairs of jaws in various lengths, pulling processes with various combinations and spatial depths are enabled. This allows any component that sits on a shaft and is freely accessible from the outside to be removed. The narrow jaws ensure that even tight and hard-to-reach spaces can be accessed. The soft-touch knobs guarantee the highest level of operating comfort, even with wet or oily hands.
Application
For the safe and user-friendly removal of bearings, gears, and discs in all common sizes for crafts, workshops, and industry.Article features
 Spread external extraction (min. - max.) [mm/inch] |
 Reach external extraction [mm/inch] |
 spread internal extraction (min. - max.) [mm/inch] |
 Wrench size actuation hexagon [mm/inch] |
Max. torque [Nm/ft lb] |
Max. tensile force [kN] |
 Max. tension force [t/US t. sh.] |
Gross weight [kg/lb] |
 Carbon footprint [kg CO₂e] |
FWI seal of origin "Made in Germany" |
|---|---|---|---|---|---|---|---|---|---|
|
21 - 350 mm / 13/16 - 13 3/4 in |
400 mm / 15 3/4 in |
180 - 440 mm / 7 1/16 - 17 5/16 in |
27 mm / 1 1/16 in |
250 Nm / 184.40 |
70 kN |
7 t / 7.72 |
16,68 kg / 36.779 |
1.50 | ✓ |
