Description
Description
The jaw puller is suitable for 3-jaw universal pullers of the series 202. The robust jaws guarantee particularly safe pulling of bearings, gears, and discs.
Application
For 3-jaw universal pullers of the series 202Article features

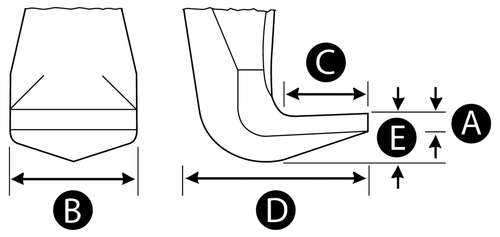

 Reach external extraction [mm/inch] |
 Overall length [mm/inch] |
 Total jaw thickness (L+1 mm) (jaw distance to base surface) [mm/inch] |
 Overall jaw's hooked claw depth (overall claw depth H) [mm/inch] |
 jaw's hooked claw width (jaw spread J) [mm/inch] |
 Usable jaw's hooked claw reach (usable claw reach O) [mm/inch] |
 Jaw's hooked claw thickness at the tip (claw thickness K) [mm/inch] |
Gross weight [kg/lb] |
 Carbon footprint [kg CO₂e] |
|---|---|---|---|---|---|---|---|---|
|
85 mm / 3 3/8 in |
120 mm / 4 3/4 in |
7 mm / 1/4 in |
22,5 mm / 7/8 in |
15 mm / 9/16 in |
9 mm / 3/8 in |
2 mm / 1/16 in |
0,66 kg / 1.455 |
0,86 |
