Description
Description

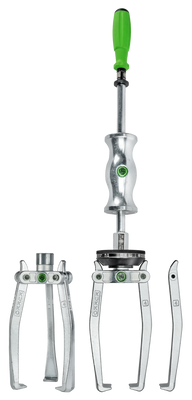

The 2-jaw and 3-jaw pullers with conical self-tensioning are used for concentric pulling of bearings, gears, and discs in all common sizes for crafts, workshops, and industry. This allows for the removal of any component that sits on a shaft and is freely accessible from the outside. With the tightening of the tension cone, the puller jaws are automatically centered. By operating the tension cone, the desired spread can be set. Additionally, the puller jaws can be pre-tensioned using the cone to prevent possible slipping. Usable as both external extractors and internal extractors (in combination with a sliding hammer) by simply reversing the puller jaws and the tension cone.
Application
For external extraction and internal extraction of gears, ball bearings, and other parts in craft, industry, and workshop.Article features
 Spread external extraction (min. - max.) [mm/inch] |
 Reach external extraction [mm/inch] |
 spread internal extraction (min. - max.) [mm/inch] |
 Length of the sliding hammer [mm/inch] |
impact stroke [mm/inch] |
 Impact mass [kg] |
Gross weight [kg/lb] |
Included in the set |  Carbon footprint [kg CO₂e] |
|---|---|---|---|---|---|---|---|---|
|
0 - 150 mm / 0 - 5 7/8 in |
170 mm / 6 11/16 in |
60 - 180 mm / 2 3/8 - 7 1/16 in |
500 mm / 19 11/16 in |
250 mm / 9 13/16 in |
1,70 kg |
1,855 kg / 4.090 |
K-220 | 14,22 |
