Description
Description

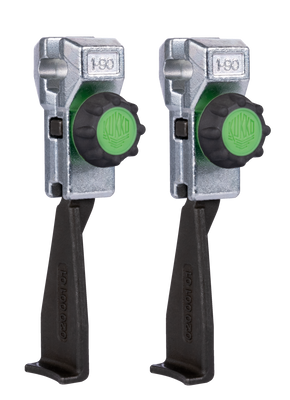

The pair of two narrow, quickly adjustable puller jaws is suitable for 2-jaw universal pullers. The narrow puller jaws ensure that even tight and hard-to-reach areas are accessible. The green hand knobs provide maximum ease of use and enable quick, tool-free release or attachment of the puller jaws, even with wet or oily hands.
Application
As accessories for tight and hard-to-reach spaces.Article features
 Reach external extraction [mm/inch] |
 Overall length [mm/inch] |
 Total jaw thickness (L+1 mm) (jaw distance to base surface) [mm/inch] |
 Overall jaw's hooked claw depth (overall claw depth H) [mm/inch] |
 jaw's hooked claw width (jaw spread J) [mm/inch] |
 Usable jaw's hooked claw reach (usable claw reach O) [mm/inch] |
 Jaw's hooked claw thickness at the tip (claw thickness K) [mm/inch] |
Gross weight [kg/lb] |
 Carbon footprint [kg CO₂e] |
FWI seal of origin "Made in Germany" |
|---|---|---|---|---|---|---|---|---|---|
|
200 mm / 8 in |
244 mm / 9 5/8 in |
6,5 mm / 1/4 in |
52 mm / 2 1/16 in |
35 mm / 1 3/8 in |
17 mm / 11/16 in |
6,5 mm / 1/4 in |
3,33 kg / 7.343 |
4,14 | ✓ |
