Description
Description

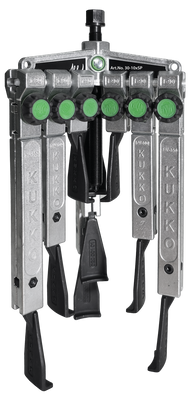

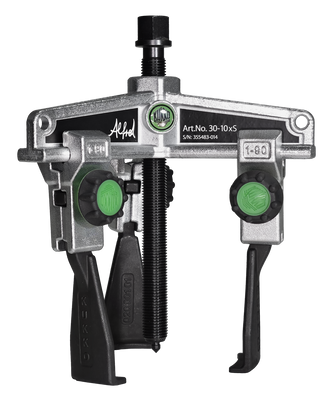

The 3-jaw universal puller with narrow, quick adjustment jaws is used for the safe extraction of bearings, gears, and discs. Equipped with three pairs of jaws in different lengths, it allows extraction operations with various combinations and depths. This allows any component seated on a shaft and externally accessible to be extracted. The narrow jaws ensure that even tight and hard-to-reach spaces are accessible. The 3-jaw configuration guarantees even load distribution and thus particularly secure grip on the part to be extracted. The Soft-Touch knurls ensure maximum comfort of use even with wet or oily hands.
Application
To safely remove bearings, gears, and discs.Article features
 Spread external extraction (min. - max.) [mm/inch] |
 Reach external extraction [mm/inch] |
 spread internal extraction (min. - max.) [mm/inch] |
 Wrench size actuation hexagon [mm/inch] |
Max. torque [Nm/ft lb] |
Max. tensile force [kN] |
 Max. tension force [t/US t. sh.] |
Gross weight [kg/lb] |
 Carbon footprint [kg CO₂e] |
FWI seal of origin "Made in Germany" |
|---|---|---|---|---|---|---|---|---|---|
|
8 - 130 mm / 5/16 - 5 1/8 in |
350 mm / 13 3/4 in |
70 - 180 mm / 2 3/4 - 7 1/16 in |
17 mm / 11/16 in |
40 Nm / 29.50 |
30 kN |
3 t / 3.31 |
1,54 kg / 3.396 |
1.94 | ✓ |
