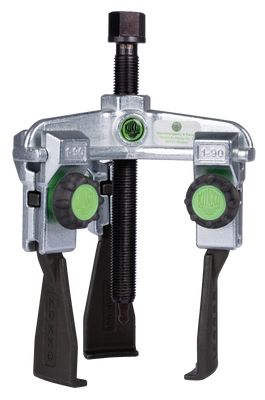

The 3-jaw universal pullers of series 30xS with narrow, quick adjustment jaws are used for the safe and user-friendly pulling of bearings, gears, and disks in all standard sizes for crafts, workshops, and industry. This allows any component that sits on a shaft and is freely accessible from the outside to be removed. The narrow jaws ensure that even tight and hard-to-reach spaces can be accessed. The green soft-touch knurls guarantee the highest level of operating comfort even with wet or oily hands. The 3-jaw design ensures even load distribution and thus particularly secure grip on the part to be pulled.
Application
For the safe and user-friendly removal of bearings, gears, and discs in all common sizes for crafts, workshops, and industry.Article features
 Spread external extraction (min. - max.) [mm/inch] |
 Reach external extraction [mm/inch] |
 spread internal extraction (min. - max.) [mm/inch] |
 Wrench size actuation hexagon [mm/inch] |
Max. torque [Nm/ft lb] |
Max. tensile force [kN] |
 Max. tension force [t/US t. sh.] |
Gross weight [kg/lb] |
 Carbon footprint [kg CO₂e] |
FWI seal of origin "Made in Germany" |
|---|---|---|---|---|---|---|---|---|---|
|
8 - 90 mm / 5/16 - 3 9/16 in |
100 mm / 3 15/16 in |
70 - 140 mm / 2 3/4 - 5 1/2 in |
17 mm / 11/16 in |
40 Nm / 29.50 |
30 kN |
3 t / 3.31 |
1,56 kg / 3.440 |
1.76 | ✓ |
