Description
Description

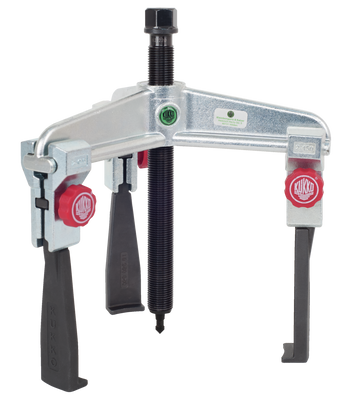

The 3-jaw universal puller with narrow, quick adjustment jaws is used for the safe and user-friendly pulling of bearings, gears and discs in all common sizes for trades, workshops and industry. This makes it possible to loosen any component that sits on a shaft and is freely accessible from the outside. The narrow jaws ensure that even tight and hard-to-access gaps can be reached. The 3-jaw design guarantees uniform load distribution and thus a particularly secure hold on the part to be pulled.
Application
For the safe and user-friendly removal of bearings, gears, and discs in all common sizes for crafts, workshops, and industry.Article features
 Spread external extraction (min. - max.) [mm/inch] |
 Reach external extraction [mm/inch] |
 spread internal extraction (min. - max.) [mm/inch] |
 Wrench size actuation hexagon [mm/inch] |
Max. torque [Nm/ft lb] |
Max. tensile force [kN] |
 Max. tension force [t/US t. sh.] |
Gross weight [kg/lb] |
Included in the set |  Carbon footprint [kg CO₂e] |
|---|---|---|---|---|---|---|---|---|---|
|
16 - 200 mm / 5/8 - 8 in |
150 mm / 6 in |
100 - 260 mm / 3 15/16 - 10 1/4 in |
22 mm / 7/8 in |
120 Nm / 88.51 |
50 kN |
5 t / 5.51 |
4,12 kg / 9.085 |
K-2030-20+S, K-2030-20+S+B | 5,4 |
