Description
Description

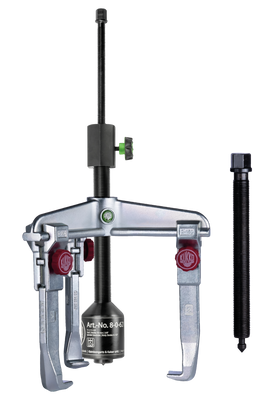

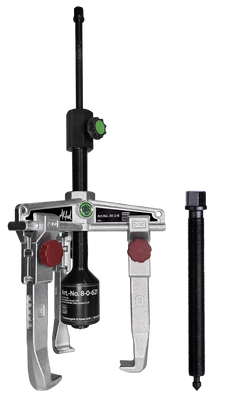

The 3-jaw universal puller with quickly adjustable jaws and hydraulic spindle is used for particularly safe and user-friendly extraction of extremely stuck bearings, gears, and disks in all common sizes for trade, workshop, and industry. The hydraulic spindle achieves an average pulling force of up to 15 t. This allows for the loosening of any component that sits on a shaft and is freely accessible from the outside. For extraction operations with pulling forces of up to 10 t and/or in confined spaces, the mechanical spindle can be used. The 3-jaw design ensures even load distribution and thus a particularly secure grip on the part to be extracted.
Application
For particularly safe and user-friendly extraction of extremely tight bearings, gears, and discs in all common sizes for trades, workshops, and industry.Article features
 Spread external extraction (min. - max.) [mm/inch] |
 Reach external extraction [mm/inch] |
 spread internal extraction (min. - max.) [mm/inch] |
Max. torque [Nm/ft lb] |
Max. tensile force [kN] |
 Max. tension force [t/US t. sh.] |
Gross weight [kg/lb] |
 Carbon footprint [kg CO₂e] |
|---|---|---|---|---|---|---|---|
|
0 - 375 mm / 0 - 14 3/4 in |
200 mm / 7 7/8 in |
180 - 440 mm / 7 1/16 - 17 5/16 in |
45 Nm / 33.19 |
150 kN |
15 t / 16.53 |
19 kg / 41.895 |
24,89 |
