Description
Description

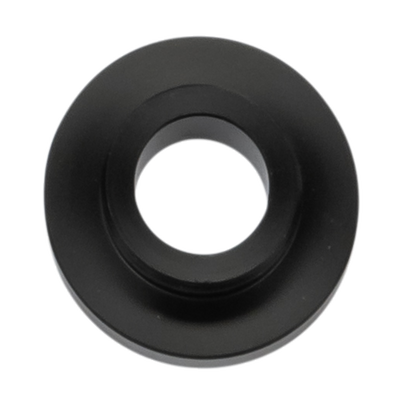

The plastic impact rings are spare parts for the bearing installation tool set (light external assembly model) of the series 71-L. The impact rings made of extremely impact-resistant plastic are required for the installation of bearings and seals.
Application
Spare part for bearing installation tool set 71-LArticle features
For ball bearing with inner diameter [mm/inch] |
 For ball bearings with outer diameter [mm/inch] |
 Outer diameter of the impact ring [mm/inch] |
Inner diameter of the impact ring [mm/inch] |
Usable height of the impact ring [mm/inch] |
Overall height of the impact ring [mm/inch] |
Gross weight [kg/lb] |
 Spare part from |
 Matching impact sleeves (list) |
 Carbon footprint [kg CO₂e] |
|---|---|---|---|---|---|---|---|---|---|
|
40 mm / 1 9/16 in |
80 mm / 3 1/8 in |
79 mm / 3 1/8 in |
40,5 mm / 1 5/8 in |
8 mm / 5/16 in |
16 mm / 5/8 in |
0,65 kg / 1.433 |
K-71-L-B, K-71-L-C, K-71-L-D, 71-L | 71-L-SH-C | 0,85 |
