Description
Description

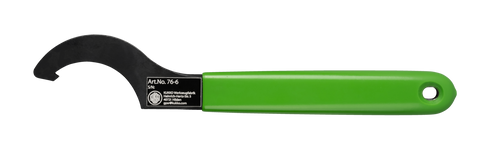

The Hook spanner with cold protection handle of the 76 series are used for loosening and tightening Lock nut. These nuts often have recesses or notches that were specifically designed for the use of Hook spanner. The Hook spanner engage in these recesses and thus enable a turning movement. Such spanners are used, for example, in mechanical engineering or the automobile industry, especially for components that are subjected to high loads and require strong securing, such as in gearboxes or shaft connections. The Hook spanner from KUKKO include a marking with a clear assignment indicating which spanner is compatible with which nuts. Suitable for N-, AN-, KMK-, KMFE- and KMT-nuts as well as for all nuts according to DIN 1804.
Application
For loosening or tightening lock nuts.Article features
 Overall length of the Hook spanner [mm/inch] |
 Working length [mm/inch] |
 Outer diameter Lock nut [mm/inch] |
 Jaw spread Hook spanner [mm/inch] |
 Head height Hook spanner [mm/inch] |
Gross weight [kg/lb] |
Included in the set |  Carbon footprint [kg CO₂e] |
FWI seal of origin "Made in Germany" |
|---|---|---|---|---|---|---|---|---|
|
170 mm / 6 11/16 in |
150 mm / 5 7/8 in |
38-45 mm / 1 1/2-1 3/4 in |
3 mm / 1/8 in |
2,5 mm / 1/8 in |
1 kg / 2.205 |
K-76-1/14 | 0,59 | ✓ |
