Description
Description

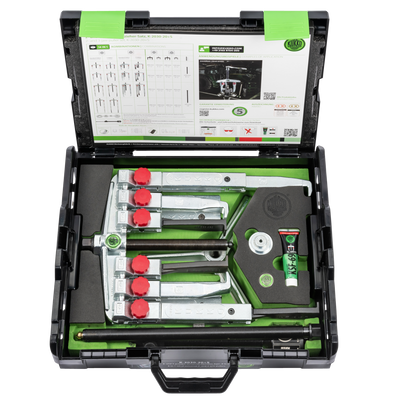

The 15-piece universal puller set with two different types of puller jaws from series 2030 is used universally for 2-jaw and 3-jaw extraction of gearbox gears, bearings, sprockets, and synchronizers in crafts, industry, and workshops. The series 2030 impresses with its diverse combination possibilities. This set includes the basic equipment of 2-jaw and 3-jaw pullers needed for universal work. Additionally, the set is equipped with two variants of puller jaws to provide even more possibilities in application. The robust design is particularly suitable for large and heavy applications in industry and commercial vehicles and enables the assembly of 14 different variants.
Application
For universal use in the removal of gearbox gears, bearings, sprockets, and synchronizers in craft, industry, and workshop.Article features
 Spread external extraction (min. - max.) [mm/inch] |
 Reach (max.) [mm/inch] |
 spread internal extraction (min. - max.) [mm/inch] |
 Wrench size actuation hexagon [mm/inch] |
Max. tensile force [kN] |
 Max. tension force [t/US t. sh.] |
Gross weight [kg/lb] |
 Consists of |
Carbon footprint [kg CO₂e] |
|---|---|---|---|---|---|---|---|---|
|
10 - 200 mm / 3/8 - 7 7/8 in |
600 mm / 23 5/8 in |
150 - 600 mm / 5 7/8 - 23 5/8 in |
22 mm / 7/8 in |
50 kN |
5 t / 5.51 |
14,76 kg / 32.546 |
621220, 621355, 2-152-P, 2-153-P, 2-302-P, 2-V-150-P, 20-20-T, 30-20-T3, 30-20-T3, 600-17, 20-30-T | 19,34 |
