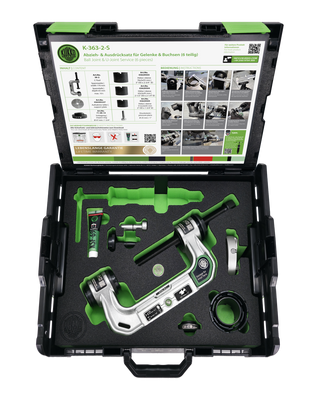

The puller and press set of series K-363 enables the safe pressing out and pressing in of rubber mounts, sockets and joint connections, as well as the removal and installation of press fits on Ball joint and U-Joint, driveshafts and brake anchor pins. Equipped with a robust C-press frame, a sleeve holder and three sleeves in different diameters, the set offers maximum flexibility and precise, efficient work on a wide variety of vehicles. Thanks to its versatility, the set can be used on trucks, vans, SUVs and selected cars. For even more force, the C-frame’s mechanical spindle can be replaced by a grease-hydraulic spindle from series 800 (sold separately). Additionally, the C-frame features an eyelet for attaching Fall protection (series 660), which secures the tool during operation and ensures safe fixation during storage or transport.
Application
For pressing out and pressing in rubber bearings, sockets and joint connectionsArticle features

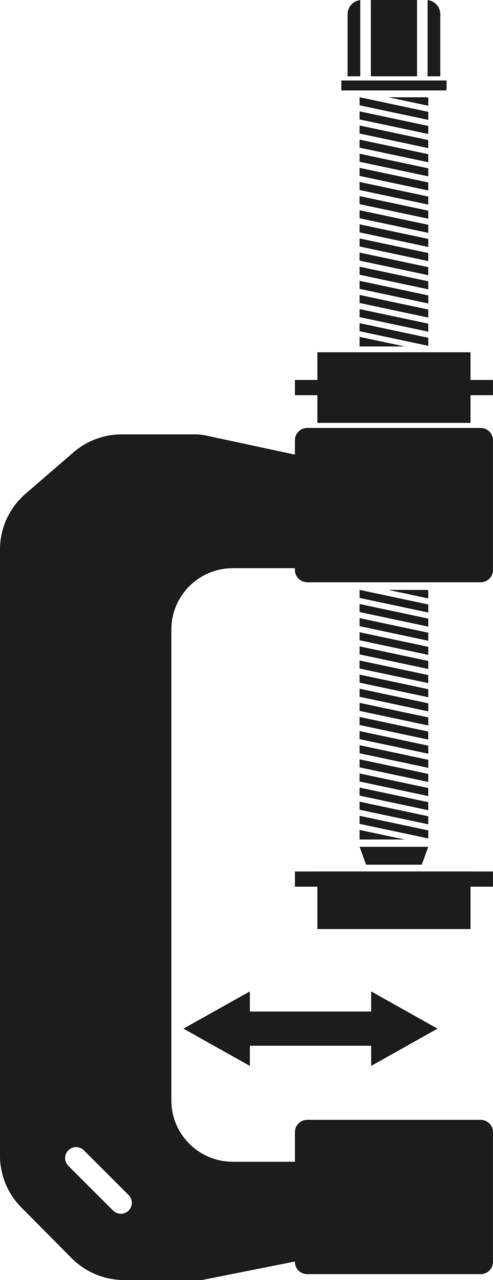

 spread of the body (max.) [mm/inch] |

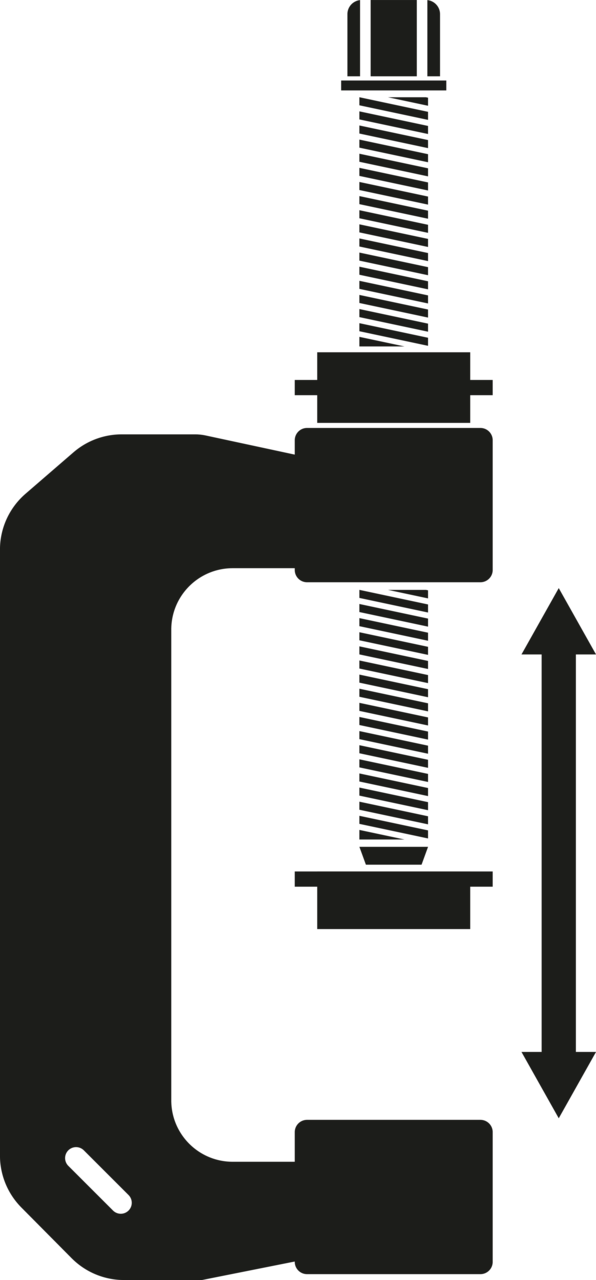

 reach of the body (max.) [mm/inch] |

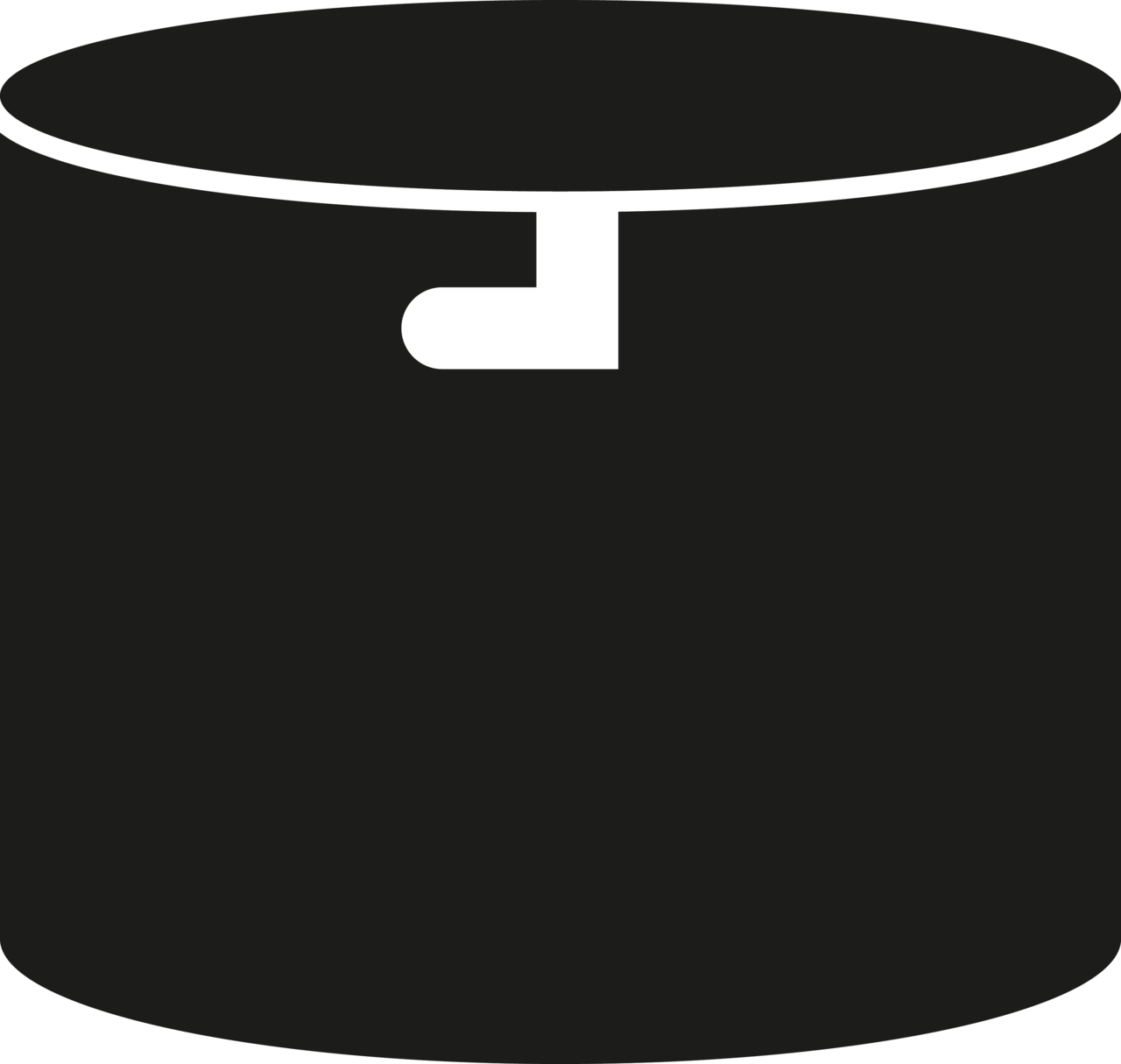

 Dimensions of the sleeves [mm/inch] |
 Diameter of the pressure piece [mm/inch] |

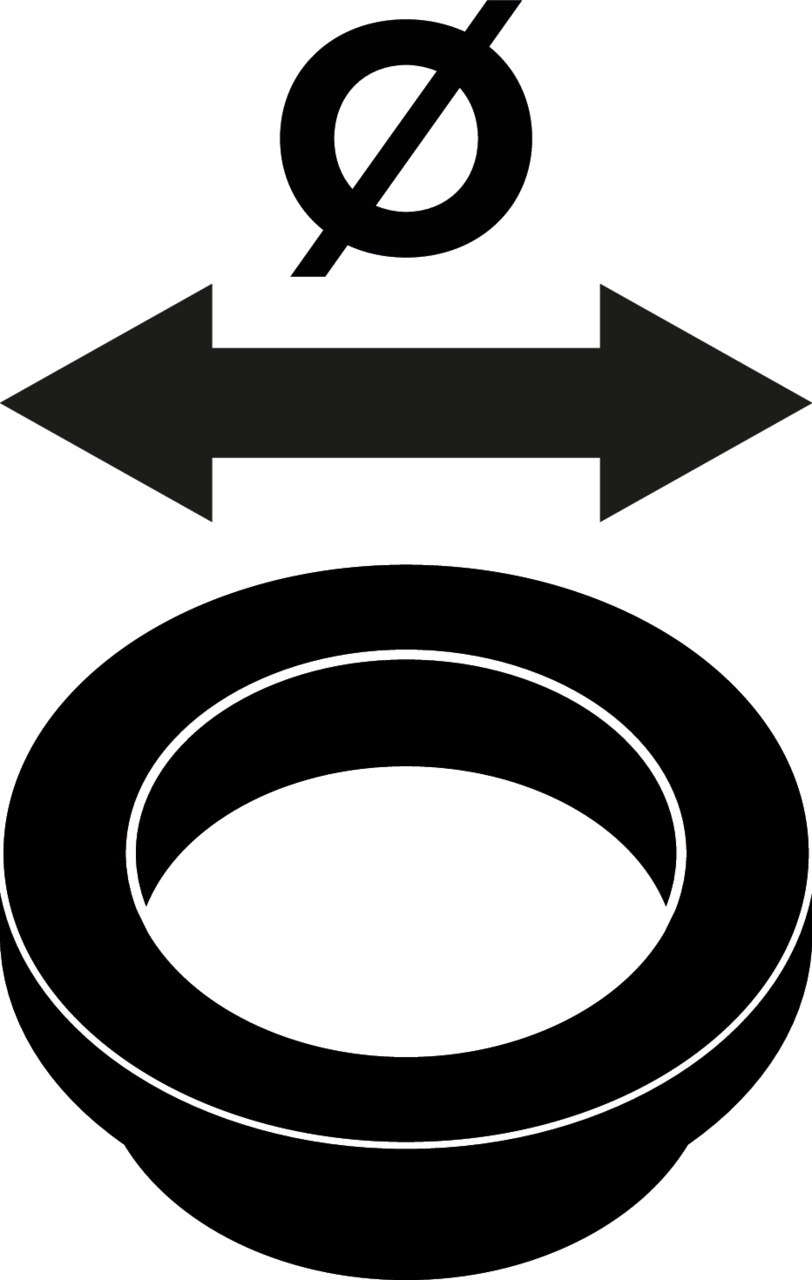

 Outer diameter of the impact ring [mm/inch] |
 Spindle thread dimension |
 Mounting thread [mm] |
Max. torque [Nm/ft lb] |
 Max. tension force [t/US t. sh.] |
Diameter of the support plate [mm] |
 Width across flats [mm] |
 Quantity brass knuckles |
 Number of pressure pieces |
 Number of sleeves |
 Number of support plates |
 Number of parts |
Gross weight [kg/lb] |
 Consists of |
Carbon footprint [kg CO₂e] |
FWI seal of origin "Made in Germany" |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
170 mm / 6 11/16 in |
65 mm / 2 9/16 in |
76 x 3 x 55, 63 x 3 x 45, 51 x 2,6 x 45 / 2 63/64 × 1/8 × 2 11/64, 2 31/64 × 1/8 × 1 49/64, 2 1/64 × 3/32 × 1 49/64 in |
25 mm / 1 in |
45,7 mm / 1 13/16 in |
G 5/8" / 14 | W 1.1/2"-16 (55°, 16Gang) |
250 Nm / 184.40 |
10 t / 11.02 |
40 mm | 24 | 1 | 1 | 3 | 1 | 6 |
9 kg / 19.845 |
36-2, 71-SR-14, 036305227, 03629503, 03629504, 03629505 | 11,05 | ✓ |
