The hydraulic spreader of the Y-165 series is a technical device that creates an expansion or spreading using hydraulic pressure. The hydraulic spreader consists of a cylinder in which a piston moves. By using hydraulic fluid, the piston is moved with high pressure, which opens the two arms of the spreader. Hydraulic spreaders are mainly used by the fire department, in rescue technology, and industry. The accompanying safety block ensures that the flanges are held in the spread position so that the tool can be repositioned.
Application

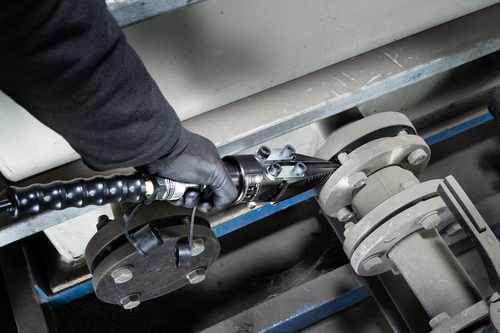

For spreading flangesArticle features
 Spannweite (min - max) [mm/inch] |
 Hub [mm/inch] |
 Max. Pressure [bar] |
Max. tensile force [kN] |
 Max. tension force [t/US t. sh.] |
Gross weight [kg/lb] |
 Carbon footprint [kg CO₂e] |
FWI seal of origin "Made in Germany" |
|---|---|---|---|---|---|---|---|
|
6 - 46 mm / 1/4 - 1 13/16 in |
25 mm / 1 in |
700 bar | 150 kN |
15 t / 16.53 |
6,6 kg / 14.553 |
0.01 | ✓ |
