Description

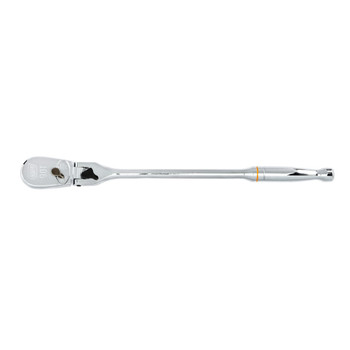

The Pass-Thru™ socket and ratchet system by GEARWRENCH was designed to improve productivity and access on every job. The GearRatchet™ ratchets need as little as 5° to move fasteners vs. 30° for standard wrenches and are 40% stronger than standard ratchets by eliminating the drive tang. The ratchets are up to 50% thinner than standard ratchets providing superior access to even the most hard-to-reach fasteners.
View AllClose
__#Product Specifications
| Warranty | Full Lifetime |
| Drive Tang Size | 1/4 in |
| Knurled | N o |
| Flexible | Yes |
| ANSI Specification | Meets or Exceeds |
| Family Name | Pass-Thru™ |
| Type | Ratchet |
| Overall Length | 6.5 in |
| Locking | Yes |
| Magnetic | No |
| Ratchet Head Style | Pass-Thru™ |
| Material | Alloy Steel |
| Reversible | Yes |
| Ratchet Handle Type | Locking Flex |
| Length Format | Standard |
| Finish | Full Polish Chrome |
| Quick Release | No |
| Tooth Count | 72 |
| ASME Specification | B107.10 |
| Swing Arc | 5 ° |
__#Features & Benefits
- Up to 50% thinner head profile than conventional ratchet systems
- 5° ratcheting arc
- Built up to 40% stronger than traditional ratchets by eliminating the drive tang
- Pass-Thru™ ratchet and socket system eliminates the n eed for deep sockets
- 11 locking head positions
- Dual material comfort grip handle
- Meets or exceeds ASME specifications
