__#Product Overview

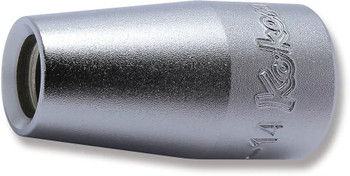

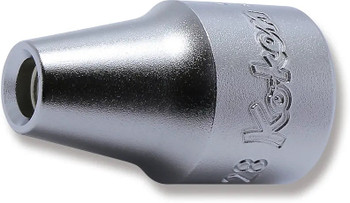

1/2” DRIVE SAE, STUD SETTER SET
The Stud Bolt Setter is a special socket for installing a stud bolt. The bolt contact with a steel ball to prevent the bolt from sticking onto the socket. After installing the bolt, turn anti-clockwise to remove the socket.
Product Dimension (Refer Line Drawing Image):
__#Product Specifications
| Input Drive Size: | 1/2" |
| Drive Shape: | Square |
| Length: | 44mm |
| Type: | Stud Bolt Setter |
| Output Size: | 1/2 X 13UNC |
| D1 Size | 19mm | D2 Size | 22.9mm |
|---|---|---|---|
| H Size | 14mm | L Size | 44mm |
