__#Product Overview
Product Dimension (Refer Line Drawing Image):

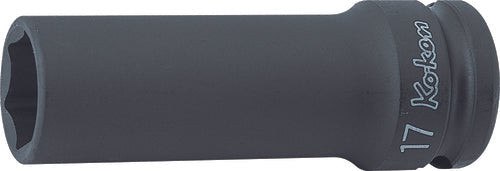

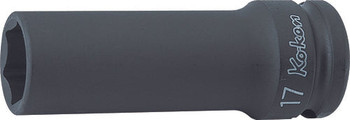

Flat Drive Socket
Flat Drive is engineered to ensure a secure, flat surface contact between the socket and the bolt or nut. This design minimizes wear, enhances durability, and enables the transmission of higher torque for improved performance.
Additionally, the Flat Drive system is incorporated not only in the hexagonal and bi-hexagonal socket openings but also in the square drive end, ensuring consistent engagement and torque distribution across all connection points.
__#Product Specifications
| Input Drive Size | 1/2" | Drive Shape | Square |
|---|---|---|---|
| Length | 80mm | Type | 6 Point Deep Thin Wall Socket |
| Output Size | 19mm | Opening | 6pt |
| Thin Walled | Yes | D1 Size | 26.7mm |
| D2 Size | 29mm | H1 Size | 19mm |
| H2 Size | 61mm | L Size | 80mm |
