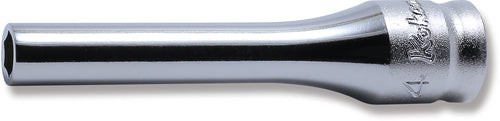

Koken 2300MZ-7, 1/4 Sq. Dr. Socket 7mm 6 point Length 50mm Z-series

Metric, ¼” drive, 6 Point, Deep, Chrome Hand Sockets. A six-point socket is designed to contact the head of a fastener well away from the corners so contact is made on the thickest part of the fastener. the edges of a socket are angled back a few degrees to allow the socket to slide easily over a fastener.

Input Drive Size	1/4"	Drive Shape	Square
Length	50mm	Type	6 Point Deep Socket
Output Size	7mm	Hardness	HRC 42
D1 Size	9.9mm	D2 Size	11mm
H1 Size	8mm	H2 Size	41mm
L Size	50mm
