Description

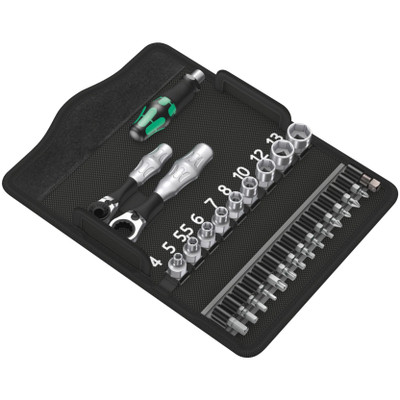

Ratchets and screws in a Kraftform Kompakt format. These drop-forged, full-steel ratchets, Zyklop Mini 1 and 2, combine filigree design with incredible robustness. For particularly rapid screwdriving in confined working situations. Zyklop Mini 1 or Zyklop Mini 2 can be used whenever screwdriving with power tools or conventional hand tools is unfeasible for lack of space. 1 bit ratchet Zyklop Mini 1; suitable for the take-up of bits with ¼" hexagon head drive as per DIN ISO 1173-C 6.3 and E 6.3 and Wera connecting series 1 and 4; also possible to use ¼" sockets by attaching the Wera adaptor 870/1. 1 socket ratchet Zyklop Mini 2; suitable for the direct attachment of Wera Zyklop special sockets 8790 FA.
__#Product Specifications
Highlights
- Zyklop Mini ratchet for the direct mounting of the Zyklop 8790 FA special sockets with 1/4" and Hex 11 hexagon drive
- The 8790 FA special sockets have a very low overall height (18 mm), ideal for screw connections wh ere space is limited
- Drop-forged, full-steel ratchet design
- For screwdriving in very confined working situations
- Bit holder, 9 sockets, 14 bits and 1 adaptor
- Hollow design of the Zyklop Mini ratchet 8005 and the socket s 8790 FA; the thread rods (up to M6) can pass completely through the tool during screwdriving
- In robust textile box
Drive Types
- Phillips
- Pozidriv
- TORX®
- Hex 11
- Hexagon
- Square Re cess
- External Hexagon
Product Features
- Switch
- Return angle 6°
- Drop-forged full steel design
- Hex-Plus
- Suitable for Wera 2go
- Non-roll feature
- Kraftform handle
__#What's Included
- 8001 A Bit Ratchet 1/4" - 1/4" x 87 mm - qty 1
- 8005 Zyklop Mini 2 Ratchet - 107 mm - qty 1 - part# 05003660001
- 813 Bitholding screwdriver - 1/4" x 78 mm - qty 1 - part# 05051274001
- 870/1 Adaptor - 1/4" x 25 mm - qty 1 - part# 05136000001
- 851/1 Z bits - PH 1 x 25 mm - qty 1 - part# 05072070001
- 851/1 Z bits - PH 2 x 25 mm - qty 1 - part# 05072072001
- 855/1 Z bits - PZ 1 x 25 mm - qty 1 - part# 05072080001
- 855/1 Z bits - PZ 2 x 25 mm - qty 1 - part# 05072082001
- 867/1 TORX® bits - TX 10 x 25 mm - qty 1 - part# 05066485001
- 867/1 TORX® bits - TX 15 x 25 mm - qty 1 - part# 05066486001
- 867/1 TORX® bits - TX 20 x 25 mm - qty 1 - part# 05066487001
- 867/1 TOR X® bits - TX 25 x 25 mm - qty 1 - part# 05066488001
- 867/1 TORX® bits - TX 30 x 25 mm - qty 1 - part# 05066490001
- 867/1 TORX® bits - TX 40 x 25 mm - qty 1 - part# 05066491001
- 840/1 Z bits - 3 x 25 mm - qty 1 - part# 05056315001
- 840/1 Z bits - 4 x 25 mm - qty 1 - part# 05056320001
- 840/1 Z bits - 5 x 25 mm - qty 1 - part# 05056325001
- 840/1 Z bits - 6 x 25 mm - qty 1 - part# 05056330001
- 8790 FA Zyklop socket with 1/4" and Hexagon 11 drive - 4 x 18 mm - qty 1 - part# 05003665001
- 8790 FA Zyklop socket with 1/4" and Hexagon 11 drive - 5 x 18 mm - qty 1 - part# 05003667001
- 8790 FA Zyklop socket with 1/4" and Hexagon 11 drive - 5.5 x 18 mm - qty 1 - part# 05003668001
- 879 0 FA Zyklop socket with 1/4" and Hexagon 11 drive - 6 x 18 mm - qty 1 - part# 05003669001
- 8790 FA Zyklop socket with 1/4" and Hexagon 11 drive - 7 x 18 mm - qty 1 - part# 05003670001
- 8790 FA Zyklop socket with 1/4" and Hexagon 11 driv e - 8 x 18 mm - qty 1 - part# 05003675001
- 8790 FA Zyklop socket with 1/4" and Hexagon 11 drive - 10 x 18 mm - qty 1 - part# 05003690001
- 8790 FA Zyklop socket with 1/4" and Hexagon 11 drive - 12 x 18 mm - qty 1 - part# 05003684001
- 8790 FA Zyklop socket with 1/4" and Hexagon 11 drive - 13 x 18 mm - qty 1 - part# 05003685001
- Hook and Loop Fastener Strip 120 - 120 x 50 mm - qty 1
