Description
The "EKR-1000 series" is built with a focus on ease of use, reliability, product functionality, and quality, with the basic design completely redesigned from the ground up. It is a chest of drawers that embodies KTC quality, representing the next generation standard that will satisfy many people, with a new design that has a presence a class above the rest, the confidence of "Made in Japan," and all of KTC's experience, technology, and know-how.
- Main unit size (W1×D×H): 715×390×410 mm
- Top space: W695×D340×H65 mm (load capacity 20kg)
- Drawers 1–4: W600×D325×H45 mm (load capacity 15kg each)
- Accessories: Top mat ×1, drawer mat ×4, divider plate ×2, key ×2
- Weight: 39kg
__#Product Specifications
| Part No. | Color | W1 (mm) | W2 (mm) | D (mm) | H (mm) | Weight (kg) |

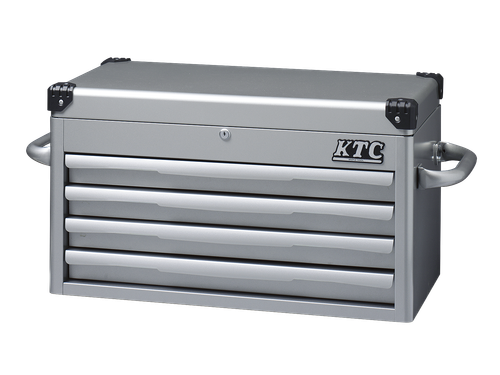

| EKR-1004 | Silver | 715 | 885 | 390 | 410 | 39 |
| EKR-1004R | Red | 715 | 885 | 390 | 410 | 39 |
| EKR-1004BK | Black | 715 | 885 | 390 | 410 | 39 |

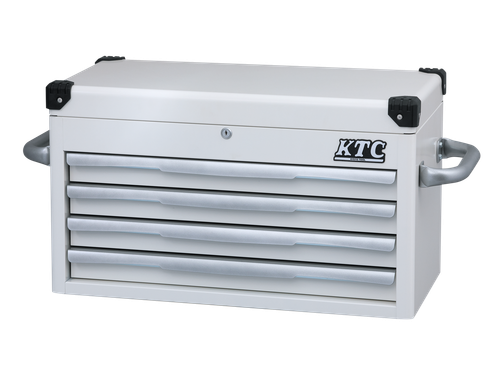

| EKR-1004WH | White | 715 | 885 | 390 | 410 | 39 |
| Top space (mm) | W695×D340×H65, load capacity 20kg |
| Drawers 1–4 (mm) | W600×D325×H45, load capacity 15kg each |
__#Features & Benefits
Handle
Fixed large handle that is easy to grip and hard to pinch your hands in, chosen with workability and safety in mind.
Face jointThe top cover joins the body along a flat surface, ensuring rigidity
that withstands hard use.
Corner padsCorner
bumpers come standard on the top cover, reducing the risk of accidental injury and helping to protect the unit.
Wide bodyWide-body design that lets you store long items sideways.
Inner latchBall-bearing rails on every drawer allow
smooth opening and closing. The inner latch mechanism prevents drawers from sliding out unexpectedly.
Rail guideDrawer rails are mounted with guides.
Inner frameCO2 spot-welded inner frame construction and extensive use of 1.2
mm-thick steel plate ensure rigidity that resists sagging over long-term use.
Bent edgesBending is applied not only to the exterior but also to the cross-sections of the drawers, reducing the risk of cuts and other injuries.
