Description

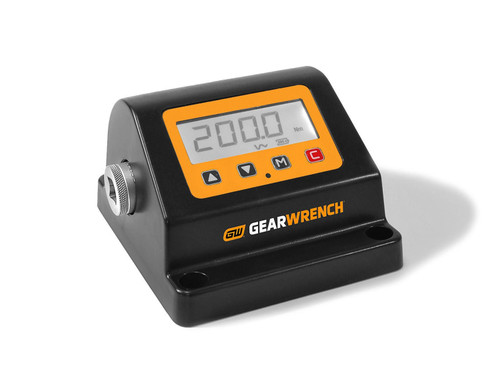

Bench testers are ideal for point-of-use. Can be mounted on a bench or stand. Compact durable design with a backlit screen. Rechargeable battery included.
View AllClose
__#Product Specifications
| Warranty | 90 Days Calibration/1 Year on Parts |
| Drive Tang Size | 1/2 in |
| Display | L CD with Backlight |
| ANSI Specification | Meets or Exceeds |
| Overall Length | 5.3 in |
| Overall Width | 5.4 in |
| Overall Height | 3.3 in |
| Material | Steel |
| Finish | Painted |
| ASME Specification | Meets or Exceeds |
| Maximum Torque (Primary Scale) | 100 ft/lb |
| Minimum Torque (Primary Scale) | 10 ft/lb |
| Type | Tester |
| Torque Accuracy (20-100% of Full Range) | ± 1% Clockwise |
| Maximum Torque (Alt Scale) | 135.6 Nm |
| Minimum Torque (Alt Scale) | 13.6 Nm |
__#Features & Benefits
- Designed for inspection of torque wrenches in a production workshop with an accuracy of +/- 1%
- Percentage error between the measured value and the set value, no more manual calculation needed
- 4 torque measurement units provid e a readout in ft/lb, in/lb, Nm, and Kg/cm
- 3 available modes track, peak, and first
- Data can be uploaded via a USB interface
- Backlit for ease of use in dark working conditions
- Runs on either a full-time AC connection or with the built-in li-ion battery
- 10 minute auto shutdown extends battery life
- Can be fixed onto workbench or base plate with 4 screw bolts
- 1 year limited warranty; calibration accuracy warrantied for 90 days
