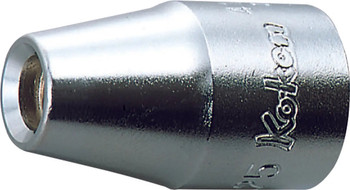

Koken 4103M-10(1.25) 1/2 Sq. Dr. Stud Bolt Setter M10 X 1.25 Length 44mm

1/2” DRIVE, STUD SETTER

The Stud Bolt Setter is a special socket for installing a stud bolt. The bolt contact with a steel ball to prevent the bolt from sticking onto the socket. After installing the bolt, turn anti-clockwise to remove the socket.

Input Drive Size:	1/2"
Drive Shape	Square
Length	44mm
Type	Stud Bolt Setter
Output Size	10mm x 1.25mm

D1 Size	15.3mm	D2 Size	23mm
H Size	13mm	L Size	44mm
