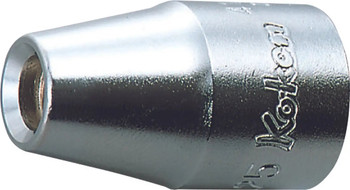

Koken 4103M-12(1.25) 1/2 Sq. Dr. Stud Bolt Setter M12 X 1.25 Length 44mm

1/2” DRIVE, STUD SETTER

The Stud Bolt Setter is a special socket for installing a stud bolt. The bolt contact with a steel ball to prevent the bolt from sticking onto the socket. After installing the bolt, turn anti-clockwise to remove the socket.

Input Drive Size	1/2"	Drive Shape	Square
Length	44mm	Type	Stud Bolt Setter
Output Size	12mm x 1.25mm	D1 Size	17.8mm
D2 Size	23mm	H Size	14mm
L Size	44mm
