Description
Description

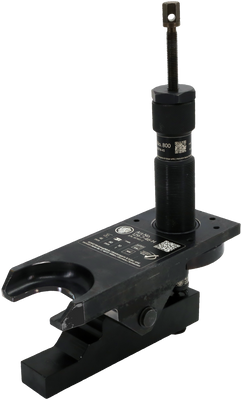

The tie rod and drag link joint puller with grease hydraulic spindle from series 129-7-H is used for hydraulically pressing out and separating ball studs when removing ball joints on tie rods and drag links. The puller is specifically designed for use on trucks and low-floor buses. Thanks to the integrated adapter plate and the reducing piece, the puller can be used with a grease hydraulic spindle from the 800 series, a stroke cylinder (YSM-200), as well as with a mechanical spindle.
Application
For hydraulic pressing of the ball pins during the removal of ball joints on steering and track rods specifically for trucks and low-floor buses.Article features
 jaw opening [mm/inch] |
 Lever clamping range [mm/inch] |
Max. tensile force [kN] |
 Max. tension force [t/US t. sh.] |
Gross weight [kg/lb] |
FWI seal of origin "Made in Germany" |
|---|---|---|---|---|---|
|
36 mm / 1 7/16 in |
60 mm / 2 3/8 in |
100 kN |
10 t / 11.02 |
5,395 kg / 11.896 |
ā |
