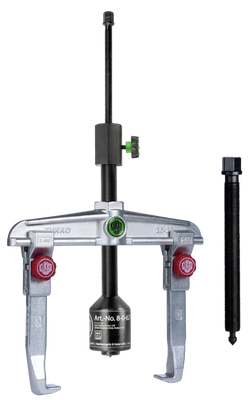

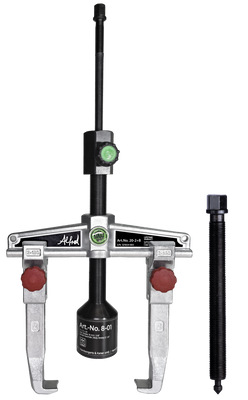

The 2-jaw universal puller with quick-adjustable extractor jaws and hydraulic spindle is used for particularly safe and user-friendly extraction of extremely tight bearings, gears, and discs in all common sizes for craftsmanship, workshop, and industry. The hydraulic spindle achieves a tension force of 12 t. This allows for the loosening of any component that sits on a shaft and is freely accessible from the outside. For extraction processes with a tension force of up to 10 t and/or in tight spatial conditions, the mechanical spindle can be used.
Application
For particularly safe and user-friendly removal of extremely tight bearings, gears, and discs in all common sizes for crafts, workshops, and industry.Article features
 Spread external extraction (min. - max.) [mm/inch] |
 Reach external extraction [mm/inch] |
 spread internal extraction (min. - max.) [mm/inch] |
Max. torque [Nm/ft lb] |
Max. tensile force [kN] |
 Max. tension force [t/US t. sh.] |
Gross weight [kg/lb] |
 Carbon footprint [kg CO₂e] |
|---|---|---|---|---|---|---|---|
|
0 - 250 mm / 0 - 9 13/16 in |
200 mm / 7 7/8 in |
180 - 340 mm / 7 1/16 - 13 3/8 in |
20 Nm / 14.75 |
120 kN |
12 t / 13.23 |
8,9 kg / 19.625 |
11,66 |
