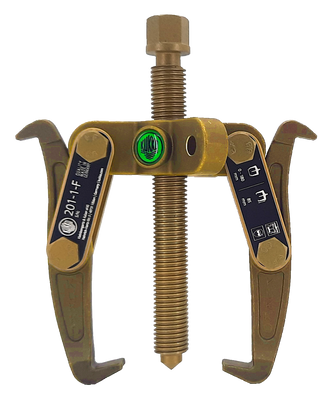

The 2-jaw, Non-Sparking puller with oscillating and reversible jaws of the 201-F series are used for centered pulling of bearings, gears and discs in all common sizes for trade, workshop and industry. Due to their manufacture from high-quality special alloys such as copper-beryllium or aluminum bronze, Non-Sparking puller are particularly suitable for use in potentially explosive areas, as they do not generate sparks even in mechanical contact with metal surfaces. The oscillating jaws with adjustable reach can be used on both sides, thus offering maximum flexibility during pulling. The Non-Sparking puller from KUKKO 201-1-F, 201-2-F, 202-1-F and 202-2-F have been tested and certified by the accredited ATEX certification body J.S. Hamilton Poland. The EU-wide recognized certification confirms their suitability for potentially explosive areas, for example in mining with methane or coal dust risk. The tested materials prevent spark formation and ensure maximum safety as well as reliability in use in accordance with the highest international standards.
Article features
 Version low spark |
 Spread external extraction (min. - max.) [mm/inch] |
 Reach external extraction [mm/inch] |
 Wrench size actuation hexagon [mm/inch] |
Max. torque [Nm/ft lb] |
Claw end with slit |
Max. tensile force [kN] |
 Max. tension force [t/US t. sh.] |
Gross weight [kg/lb] |
 Carbon footprint [kg CO₂e] |
FWI seal of origin "Made in Germany" |
|---|---|---|---|---|---|---|---|---|---|---|
| Yes |
0 - 220 mm / 0 - 8 11/16 in |
130 mm / 5 1/8 in |
22 / 7/8 in |
150 Nm / 110.64 |
Yes | 70 kN |
7 t / 7.72 |
2,45 kg / 5.402 |
1,49 | ✓ |
