The sentence jaws with adjustable reach is suitable for 3-jaw universal pullers with pivoting jaws and adjustable reach of series 205. The robust jaws ensure a particularly safe removal of bearings, gears, and discs.
Application
For 3-jaw universal pullers with swiveling jaws and adjustable reach of series 205Article features

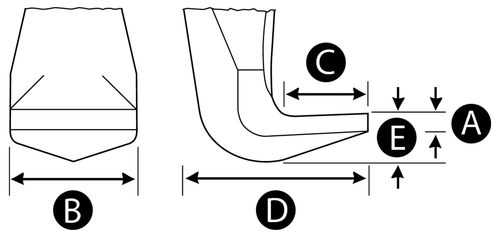

 Reach external extraction [mm/inch] |
 Overall length [mm/inch] |
 Total jaw thickness (L+1 mm) (jaw distance to base surface) [mm/inch] |
 Overall jaw's hooked claw depth (overall claw depth H) [mm/inch] |
 jaw's hooked claw width (jaw spread J) [mm/inch] |
 Usable jaw's hooked claw reach (usable claw reach O) [mm/inch] |
 Jaw's hooked claw thickness at the tip (claw thickness K) [mm/inch] |
Gross weight [kg/lb] |
 Carbon footprint [kg CO₂e] |
|---|---|---|---|---|---|---|---|---|
|
100 mm / 3 15/16 in |
132 mm / 5 3/16 in |
7,5 mm / 5/16 in |
27 mm / 1 1/16 in |
14 mm / 9/16 in |
12 mm / 1/2 in |
2 mm / 1/16 in |
0,36 kg / 0.794 |
0,47 |
