Description
Description

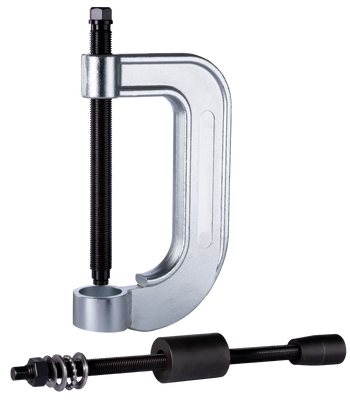

The puller set for suspension joints EVOBUS is used for the installation and removal of the control arm on ZF axles. The tools can be applied on axles RL 75 E, which serve as the front axle for all high-floor buses (buses with trunk, coaches from Euro II and combi buses from Euro IV) from Setra and Mercedes-Benz. Furthermore, they are applicable to the axles RL 75 EC, which are used as front axles for low-floor buses (Citaro, Setra low-floor series 400 or S 415 NF), and in coaches and combi buses as auxiliary axles.
Application
For the assembly and disassembly of the control arm on ZF axles.Article features
 Installation depth [mm/inch] |
 For socket with diameter (set) [mm/inch] |
 Wrench size actuation hexagon [mm/inch] |
Max. torque [Nm/ft lb] |
Max. Pressing force [kN] |
Max. Press force [t] |
Gross weight [kg/lb] |
 Carbon footprint [kg CO₂e] |
|---|---|---|---|---|---|---|---|
|
320 mm / 12 5/8 in |
58 - 79 / 2 5/16-3 1/8 in |
36 mm / 1 7/16 in |
400 Nm / 295.04 |
120 kN | 12 t |
12,69 kg / 27.981 |
16,62 |
