Description
Description

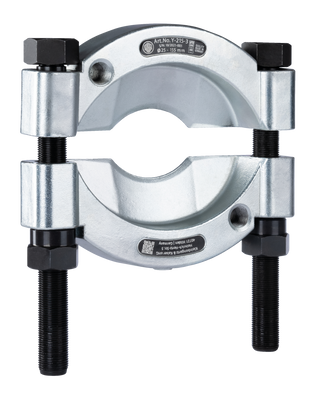

The pulling devices of the Y-15 series are used for pulling ball bearings, roller bearings, inner rings and other flush-mounted parts in crafts, workshops and industry when there is not enough space for jaws. The separation/pulling process is able to first separate these parts gently before they can be pulled off from the outside. The 15 series impresses with its compatibility and range of applications. Depending on the application, there are several variants of the pulling devices. The pulling devices of the Y-15 series require the hydraulic Tensile/compressive puller of the Y-180 series.
Application
For removing ball bearings, roller bearings, inner rings, and other flush-mounted parts in craftsmanship, workshops, and industry.Article features
 Separating diameter (min. - max.) [mm/inch] |
 Total width [mm/inch] |
 Total depth [mm/inch] |
 Overall height [mm/inch] |
 Mounting thread for tension bolt [mm] |
 Overall cutting height [mm/inch] |
 Cutting edge thickness at the tip [mm/inch] |
 Cutting thickness rear [mm/inch] |
 Usable cutting depth [mm/inch] |
 Wrench size actuation hexagon [mm/inch] |
Gross weight [kg/lb] |
 Suitable for (list) |
Included in the set |  Carbon footprint [kg CO₂e] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
75 - 330 mm / 2 15/16 - 12 1 in |
430 mm / 16 15/16 in |
60 mm / 2 3/8 in |
595 mm / 23 7/16 in |
1 1/4"-12 UNF |
130 mm / 5 1/8 in |
2 mm / 1/16 in |
16 mm / 5/8 in |
70 mm / 2 3/4 in |
55 mm / 2 3/16 in |
39 kg / 85.995 |
Y58-180 | Y58-518, Y58-500 | 51,09 |
