The set of three narrow, quickly adjustable jaws is suitable for 3-jaw universal pullers. The narrow jaws ensure that even tight and hard-to-reach gaps can be accessed. The green hand knobs provide maximum operating comfort and allow for quick, tool-free loosening and fastening of the jaws, even with wet or oily hands.
Application
As accessories for tight and hard-to-reach spaces.Article features

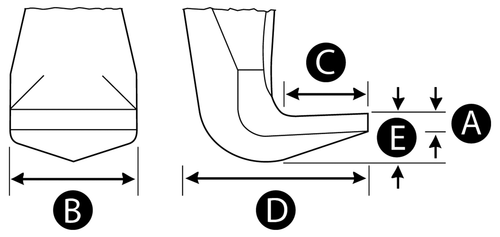

![]() Reach external extraction [mm/inch] |
![]() Overall length [mm/inch] |
![]() Total jaw thickness (L+1 mm) (jaw distance to base surface) [mm/inch] |
![]() Overall jaw's hooked claw depth (overall claw depth H) [mm/inch] |
![]() jaw's hooked claw width (jaw spread J) [mm/inch] |
![]() Usable jaw's hooked claw reach (usable claw reach O) [mm/inch] |
![]() Jaw's hooked claw thickness at the tip (claw thickness K) [mm/inch] |
Gross weight [kg/lb] |
![]() Carbon footprint [kg CO₂e] |
FWI seal of origin "Made in Germany" |
|---|---|---|---|---|---|---|---|---|---|
|
200 mm / 8 in |
244 mm / 9 5/8 in |
6,5 mm / 1/4 in |
52 mm / 2 1/16 in |
35 mm / 1 3/8 in |
17 mm / 11/16 in |
6,5 mm / 1/4 in |
4,94 kg / 10.893 |
7,12 | ✓ |
