Description
Description

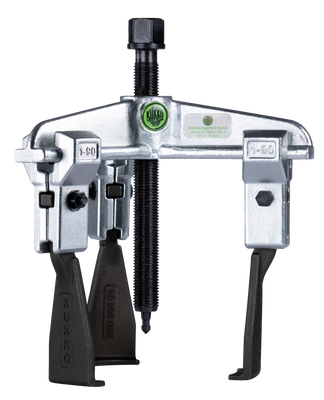

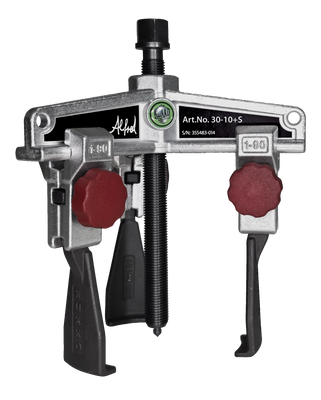

The 3-jaw universal puller with narrow, quick adjustment jaws is used for the safe and user-friendly pulling of bearings, gears and discs in all common sizes for trades, workshops and industry. This makes it possible to loosen any component that sits on a shaft and is freely accessible from the outside. The narrow jaws ensure that even tight and hard-to-access gaps can be reached. The 3-jaw design guarantees uniform load distribution and thus a particularly secure hold on the part to be pulled.
Application
For the safe and user-friendly removal of bearings, gears, and discs in all common sizes for crafts, workshops, and industry.Article features
 Spread external extraction (min. - max.) [mm/inch] |
 Reach external extraction [mm/inch] |
 spread internal extraction (min. - max.) [mm/inch] |
 Wrench size actuation hexagon [mm/inch] |
Max. torque [Nm/ft lb] |
Max. tensile force [kN] |
 Max. tension force [t/US t. sh.] |
Gross weight [kg/lb] |
Included in the set |  Carbon footprint [kg CO₂e] |
|---|---|---|---|---|---|---|---|---|---|
|
8 - 130 mm / 5/16 - 5 in |
100 mm / 4 in |
70 - 180 mm / 2 3/4 - 7 1/16 in |
17 mm / 11/16 in |
40 Nm / 29.50 |
30 kN |
3 t / 3.31 |
1,54 kg / 3.396 |
K-2030-10+S | 2,02 |
