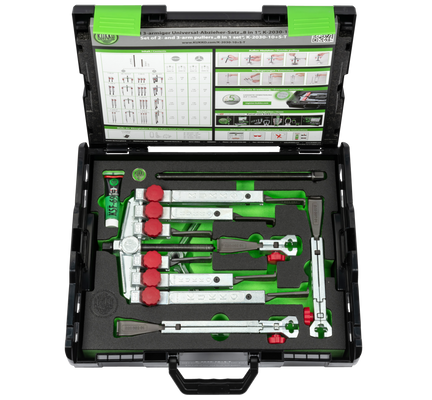

The 13-piece universal puller set with extremely narrow, quickly adjustable jaws of series 2030 is used for the 2-jaw and 3-jaw pulling of gear wheels, bearings, sprockets, synchronizers, etc. for extremely tight and hard-to-reach spaces in craft, industry, and workshop. The series 2030 impresses with its diverse combination possibilities. The kit enables the assembly of 8 different variants by combining jaws and extensions.
Application
To remove transmission gears, bearings, sprockets, synchronizers, etc. for extremely tight and hard-to-reach spaces in craft, industry, and workshops.Article features
 Spread external extraction (min. - max.) [mm/inch] |
 Reach (max.) [mm/inch] |
 spread internal extraction (min. - max.) [mm/inch] |
 Wrench size actuation hexagon [mm/inch] |
Max. tensile force [kN] |
 Max. tension force [t/US t. sh.] |
Gross weight [kg/lb] |
 Consists of |
Carbon footprint [kg CO₂e] |
|---|---|---|---|---|---|---|---|---|
|
0 - 130 mm / 0 - 5 1/8 in |
350 mm / 13 3/4 in |
70 - 180 mm / 2 3/4 - 7 1/16 in |
17 mm / 11/16 in |
30 kN |
3 t / 3.31 |
8,91 kg / 19.647 |
20-10+S-T, 30-10-T, 614250, 1-195-S, 1-255-S | 11,67 |
