Description
Description

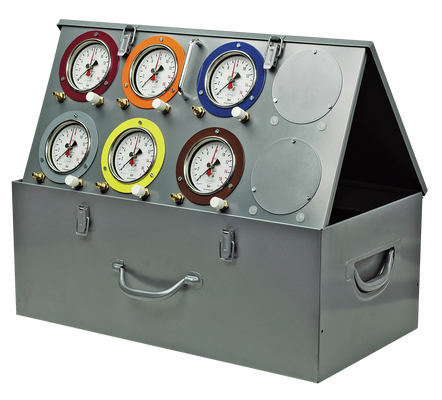

The pneumatic test case of the series W-6050 is used for testing switching pressures, intervals, steps, control and safety functions, tightness and pressure losses of compressed air brake systems up to 4 circuits, and others in industry and workshop. For buses, the case is used to test all air suspension systems and door actuation devices, as well as control or servo devices on special vehicles. The delivery includes, in addition to the test case with 6 special pressure gauges 0-16 bar, Ø 100 mm and 0.1 bar graduation, also 3 measuring hoses (5 m) and 3 measuring hoses (10 m).
Application
To check the switching pressures, intervals, gradations, control and safety functions, tightness, and pressure losses of compressed air brake systems for up to 4 circuits and others in industry and workshop.Article features
 Overall length set [mm/inch] |
 Total depth of set [mm/inch] |
 Overall height Set [mm/inch] |
 Diameter of the barometer [mm/inch] |
 Division of the scale of the barometer [bar] |
 Max. Pressure [bar] |
Gross weight [kg/lb] |
 Carbon footprint [kg CO₂e] |
|---|---|---|---|---|---|---|---|
|
645 mm / 25 3/8 in |
355 mm / 13 1 in |
250 mm / 9 13/16 in |
100 mm / 3 15/16 in |
0,1 bar | 16 bar |
19 kg / 41.895 |
24,89 |
