Description
Description

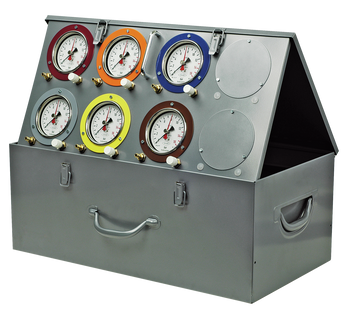

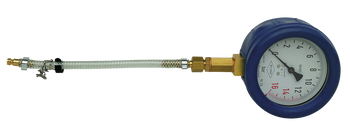

The pneumatic testing case of series W-6050 is used for testing switching pressures, intervals, steps, regulation and safety functions, tightness and pressure losses of compressed air brake systems up to 4 circuits, as well as others in industry and workshop. In buses, the case is used to test all air suspension systems and door actuation devices, as well as control or servo devices in special vehicles. The delivery includes, in addition to the testing case with 8 special pressure gauges (6 times 0-16 bar, Ø 100 mm and 0.1 bar scale, 2 times 0-25 bar, Ø 100 mm and 0.5 bar scale), also 3 measuring hoses (5 m) and 5 measuring hoses (10 m).
Application
To check the switching pressures, intervals, gradations, control and safety functions, tightness, and pressure losses of compressed air brake systems for up to 4 circuits and others in industry and workshop.Article features
 Overall length set [mm/inch] |
 Total depth of set [mm/inch] |
 Overall height Set [mm/inch] |
 Diameter of the barometer [mm/inch] |
 Division of the scale of the barometer [bar] |
 Max. Pressure [bar] |
Gross weight [kg/lb] |
 Carbon footprint [kg CO₂e] |
|---|---|---|---|---|---|---|---|
|
645 mm / 25 3/8 in |
355 mm / 13 1 in |
250 mm / 9 13/16 in |
100 mm / 3 15/16 in |
0,5 bar | 25 bar |
23 kg / 50.715 |
30,13 |
