__#Product Overview

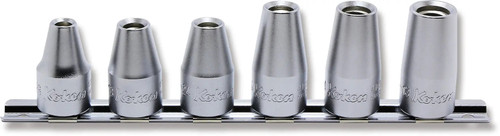

1/2” DRIVE SAE, STUD SETTER SET
The Stud Bolt Setter is a special socket for installing a stud bolt. The bolt contact with a steel ball to prevent the bolt from sticking onto the socket. After installing the bolt, turn anti-clockwise to remove the socket.
Includes:
__#Product Specifications
| Input Drive Size: | 1/2" |
| Drive Shape | Square |
|---|---|
| Length | 200mm Rail |
| Type | Stud Bolt Setter Set |
| Output Sizes | 1/4(28), 5/16(18) ,5/16(24), 3/8(16), 7/16(14), 1/2(13) |
| SKU | DESCRIPTION | LENGTH |
|---|---|---|
| 4103A-1/4(28) | 1/2 Sq. Dr. Stud Bolt Setter 1/4 X 28UNF | 37mm |
| 4103A-5/16(18) | 1/2 Sq. Dr. Stud Bolt Setter 5/16 X 18UNC | 37mm |
| 4103A-5/16(24) | 1/2 Sq. Dr. Stud Bolt Setter 5/16 X 24UNF | 37mm |
| 4103A-3/8(16) | 1/2 Sq. Dr. Stud Bolt Setter 3/8 X 16UNC | 44mm |
| 4103A-7/16(14) | 1/2 Sq. Dr. Stud Bolt Setter 7/16 X 14UNC | 44mm |
| 4103A-1/2(13) | 1/2 Sq. Dr. Stud Bolt Setter 1/2 X 13UNC | 44mm |
