Description
Description

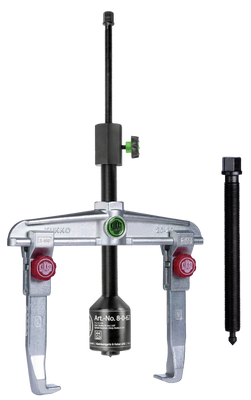

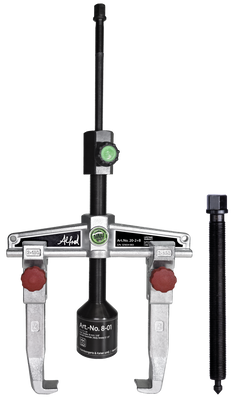

The 2-jaw universal puller with quickly adjustable jaws and hydraulic spindle is used for the particularly safe and user-friendly removal of extremely stuck bearings, gears, and disks in all common sizes for craftsmanship, workshops, and industry. The hydraulic spindle achieves a tension force of 12 tons. This allows for the loosening of any component that sits on a shaft and is freely accessible from the outside. For removal processes with a tension force of up to 10 tons and/or in tight space conditions, the mechanical spindle can be used.
Application
For particularly safe and user-friendly removal of extremely tight bearings, gears, and discs in all common sizes for crafts, workshops, and industry.Article features
 Spread external extraction (min. - max.) [mm/inch] |
 Reach external extraction [mm/inch] |
 spread internal extraction (min. - max.) [mm/inch] |
Max. torque [Nm/ft lb] |
Max. tensile force [kN] |
 Max. tension force [t/US t. sh.] |
Gross weight [kg/lb] |
 Carbon footprint [kg CO₂e] |
|---|---|---|---|---|---|---|---|
|
0 - 350 mm / 0 - 13 3/4 in |
200 mm / 7 7/8 in |
180 - 440 mm / 7 1/16 - 17 5/16 in |
20 Nm / 14.75 |
120 kN |
12 t / 13.23 |
9,625 kg / 21.223 |
12,61 |
